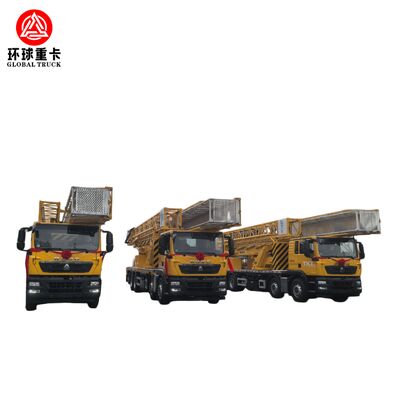

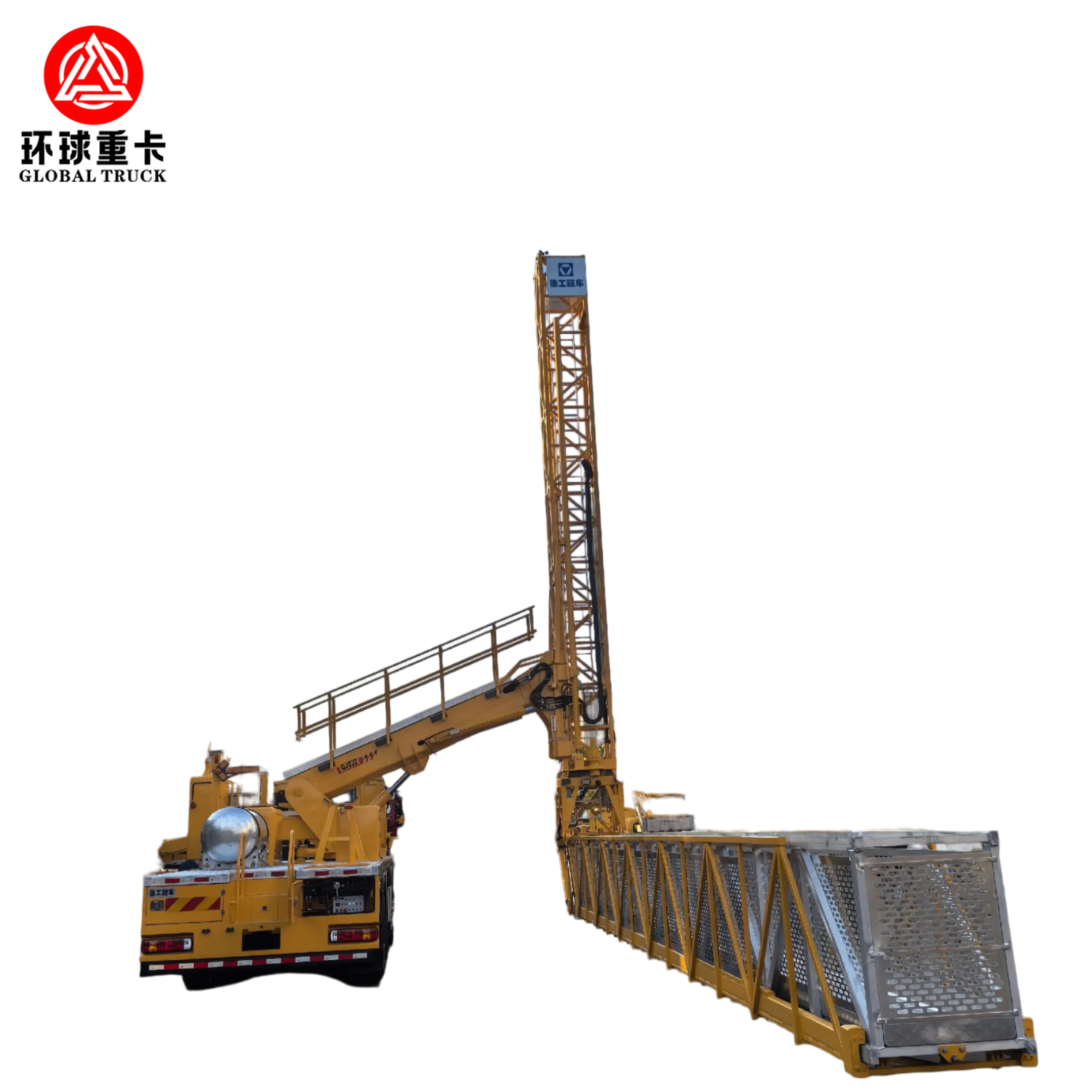

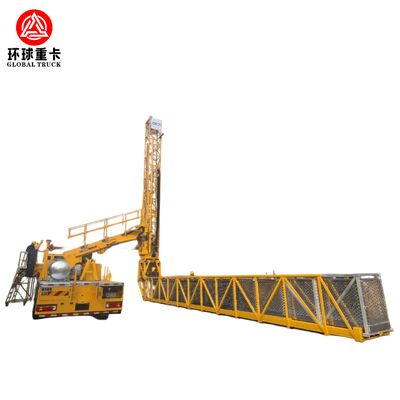

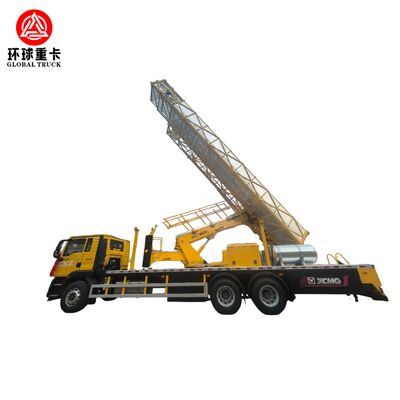

High Performance Bridge Inspection Truck with 12m-20m Working Height Euro 4/2/5/6 Emission Standard and Hydraulic Outriggers

This advanced bridge inspection truck combines XCMG upper structure with SINOTRUK HOWO chassis to deliver reliable structural safety assessments and maintenance operations.

• Overall Dimension: 9000-12000 mm (configuration dependent)
• Gross Vehicle Weight: 18,000 - 25,000 kg
• Wheelbase: 3800 - 5000 mm
• Platform Size: 1200 × 800 mm (customizable)

• Maximum Working Height: 12m - 20m
• Maximum Horizontal Reach: 8m - 12m
• Platform Load Capacity: 200 - 400 kg
• Boom Extension Sections: Multi-section design
• Operation Range: Multi-directional access under bridge structures
• Deployment Time: Fast hydraulic deployment system

• Type: Telescopic / Folding arm
• Material: High-strength structural steel
• Surface Treatment: Anti-corrosion coating
• Movement: Smooth and stable hydraulic extension
• Rotation System: Optional continuous rotation

• Type: Hydraulic outriggers
• Control: Independent or centralized control
• Function: Automatic leveling
• Safety: Interlock protection system
• Stability: Designed for uneven ground conditions

• Pump Type: Gear pump or piston pump (optional)
• Control Valve: Precision multi-way valve
• System Pressure: 16-20 MPa
• Oil Tank Capacity: Sufficient for continuous operation
• Cooling System: Equipped with oil cooling device
• Leakage Protection: High sealing performance

• Voltage: 24V DC
• Control Mode: Ground control, platform control, optional remote control
• Control Interface: Simple and intuitive
• Lighting System: LED working lights
• Protection: Waterproof and dustproof wiring system

• Emergency stop buttons (ground and platform)
• Overload protection system
• Anti-overturning system
• Hydraulic lock system
• Emergency lowering device
• Safety guardrails on platform
• Anti-slip platform surface
• Limit protection for movement range

• Cabin: Standard HOWO cabin with air conditioning
• Driving Type: Left-hand drive (standard)
• Suspension: Heavy-duty suspension system
• Axle: Reinforced axle for heavy load
• Tire: Heavy-duty radial tires
• Fuel Type: Diesel
• Fuel Consumption: Optimized for long-distance operation

Designed to operate effectively in challenging conditions including high temperature environments, dusty and rough road conditions, long-distance transportation scenarios, and outdoor continuous working conditions.

• 360-degree rotation system
• Wireless remote control
• Tool storage box
• Auxiliary power system
• Camera monitoring system
• Customized platform size
• Higher working height configuration

• Packaging: Wax spraying for anti-rust protection
• Shipping Method: RO-RO vessel, bulk cargo ship
• Container shipment available for smaller models
• Secure fixing for long-distance sea transport

• Pre-delivery inspection report
• Operation manual and guidance
• Technical support via video or remote assistance
• Spare parts supply support
• Optional on-site service
