2800HP Oilfield Fracturing Unit Truck with 8×6 Drive Configuration and High-Pressure Plunger Pump for Oil Drilling

2800HP Oilfield Fracturing Unit Truck with 8×6 Drive Configuration and High-Pressure Plunger Pump for Oil Drilling

  • 2800HP Oilfield Fracturing Unit Truck with 8×6 Drive Configuration and High-Pressure Plunger Pump for Oil Drilling
  • 2800HP Oilfield Fracturing Unit Truck with 8×6 Drive Configuration and High-Pressure Plunger Pump for Oil Drilling
  • 2800HP Oilfield Fracturing Unit Truck with 8×6 Drive Configuration and High-Pressure Plunger Pump for Oil Drilling
  • 2800HP Oilfield Fracturing Unit Truck with 8×6 Drive Configuration and High-Pressure Plunger Pump for Oil Drilling
2800HP Oilfield Fracturing Unit Truck with 8×6 Drive Configuration and High-Pressure Plunger Pump for Oil Drilling
Szczegóły Produktu:
Miejsce pochodzenia: Chiny
Nazwa handlowa: DONGFENG
Orzecznictwo: CE
Numer modelu: Ciężarówka do szczelinowania ropy
Zapłata:
Minimalne zamówienie: 1 jednostka
Cena: negocjowalne
Szczegóły pakowania: Nagi
Czas dostawy: 35 dni roboczych
Zasady płatności: L/C, T/T
Możliwość Supply: 50 SZT / Miesiąc
Kontakt
Szczegółowy opis produktu
Nr modelu: XYLC2500 Koło napędowe: 8×6
moc w koniach mechanicznych: ＞ 450 KM Moc: Diesel
Projekt opony: Bezdętkowe Norma emisji: Euro 2
Przenoszenie: Transmisja 7601c Maksymalna pojemność pompy tłokowej: 1697 l/min
Podkreślić:

2800HP Oilfield Fracturing Unit Truck

,

8×6 Drive Configuration Fracturing Equipment

,

High-Pressure Plunger Pump Oil Drilling Truck

2800HP Oilfield Fracturing Unit Truck
High-Pressure Well Stimulation Unit for Unconventional Resources
Product Overview
The XYLC2500 8×6 Oilfield Fracturing Pump Truck is a high-horsepower mobile stimulation system designed for large-scale unconventional oil and gas development. This unit combines a 2,500 HP industrial power pack, high-pressure triplex plunger pump, reinforced transmission assembly, and integrated control system on a heavy-duty 8×6 oilfield chassis, engineered for continuous high-load fracturing operations under demanding field conditions.
Heavy-Duty Chassis Platform
Drive Configuration 8×6
Chassis Engine Output 450-520 HP
Transmission Heavy-duty multi-speed manual gearbox
Maximum Road Speed 75 km/h
Operational Terrain Desert, mountainous, plateau, and muddy oilfield roads
The 8×6 configuration provides improved load distribution and enhanced traction under off-road conditions.
Power Pack System
Main Fracturing Engine
  • Rated Output Power: 2,500 HP
  • Fuel Type: Industrial diesel
  • Cooling System: High-capacity radiator with forced circulation
  • Air Intake: Multi-stage filtration system for dust protection
  • Continuous Duty Rating: Designed for extended pumping duration
Transmission & Drive System
  • Heavy-duty industrial transmission
  • PTO-driven pump system
  • High-torque drive shaft assembly
  • Vibration-dampened mounting system
  • Reinforced coupling structure
The drive system ensures stable torque transfer under maximum pressure loads.
High-Pressure Pump Assembly
  • Pump Type: Triplex plunger fracturing pump
  • Maximum Working Pressure: Up to 15,000 psi
  • Maximum Displacement: Configurable per fracturing program
  • Fluid End: Forged alloy steel, heat-treated
  • Plunger: High-wear-resistant alloy
  • Lubrication System: Forced circulation lubrication
  • Safety Components: Relief valve and rupture disc
This pump system supports high-pressure fluid injection for complex reservoir stimulation.
Application Fields
  • Shale gas reservoir stimulation
  • Tight oil reservoir fracturing
  • Deep vertical well stimulation
  • Horizontal well multi-stage fracturing
  • Acidizing treatments
  • High-pressure water injection
It can operate independently or as part of a multi-unit fracturing fleet.
Engineering Advantages
High Power Density
2,500 HP power pack ensures stable output during high-pressure operations.
Enhanced Durability
Heavy-duty fluid end and plunger materials improve service life.
Field Mobility
8×6 chassis enables reliable access to remote drilling locations.
Thermal Management
Optimized cooling system for long-duration operation.
Service Accessibility
Modular equipment layout simplifies maintenance and part replacement.
Safety Protection Features
  • Overpressure automatic shutdown
  • Engine overspeed protection
  • Hydraulic overload protection
  • High-pressure line monitoring
  • Emergency stop control system
  • Fire suppression equipment
Safety design aligns with oilfield operational standards.
Frequently Asked Questions
What does 2500 represent?
It indicates the rated horsepower of the fracturing power unit.
What type of reservoirs is this suitable for?
Unconventional reservoirs including shale, tight sandstone, and deep formations.
Can it operate in harsh climates?
Yes. Winterization and desert packages are available.
Is it suitable for fleet operations?
Yes. Multiple units can be synchronized in a fracturing spread.
Can specifications be customized?
Yes. Power rating, control system, and environmental configurations can be tailored to project requirements.

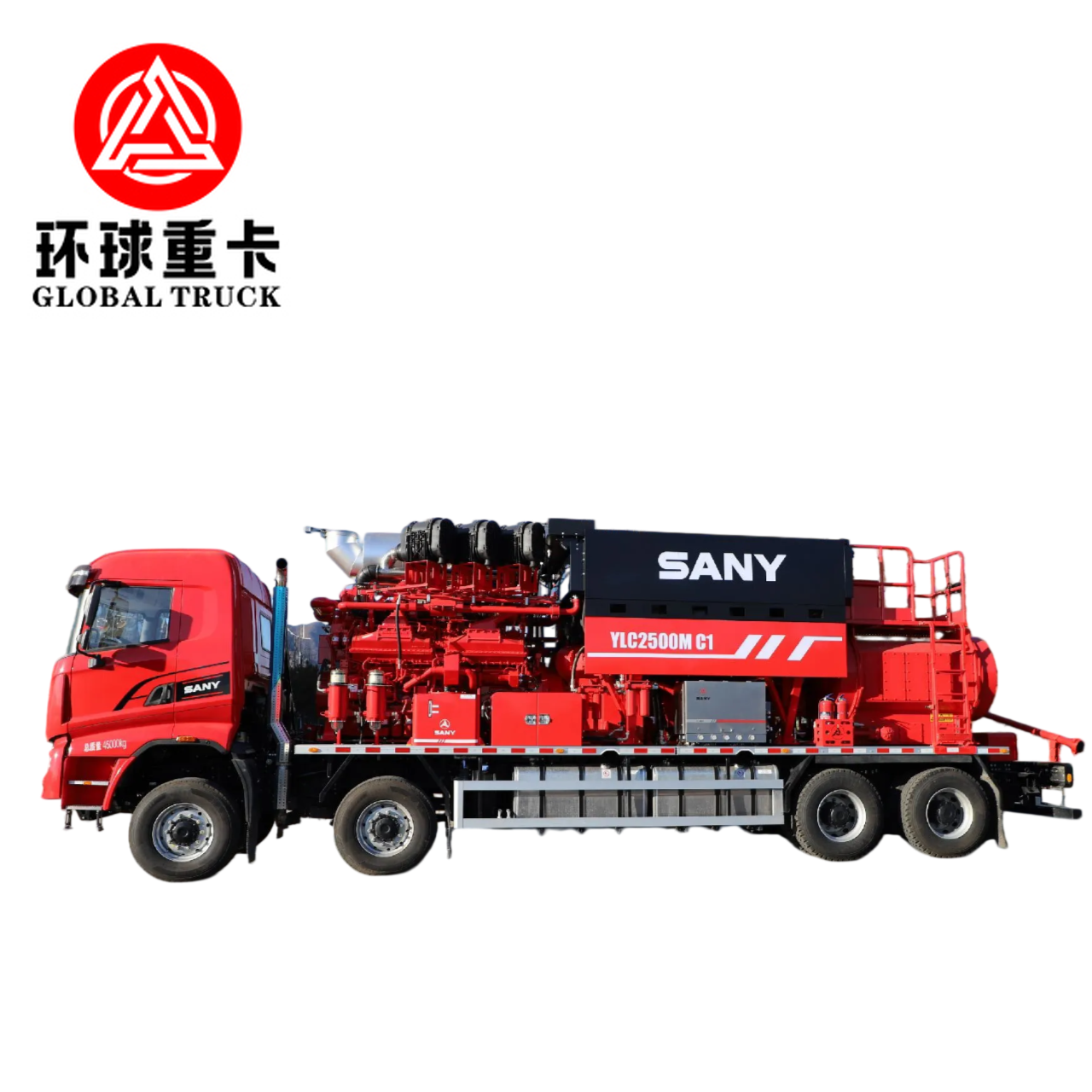

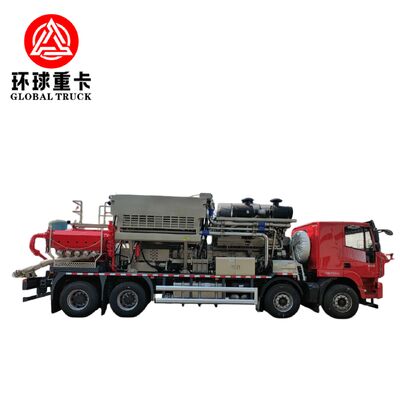

XYLC2500 8×6 Oilfield Fracturing Pump Truck in operational environment
